Cooling Pad System for Automatic Poultry Broiler Breeder Farm
Automatic Poultry House:
| Size | Modle 7090 | Modle 7060 |
| H(mm) | 1500 / 1800 / 2000 | 1500 / 1800 / 2000 |
| W(mm) | 900 / 600 / 300 | 900 / 600 |
| D(mm) | 100 / 150 / 200 / 300 | 100 / 150 / 200 / 30 |

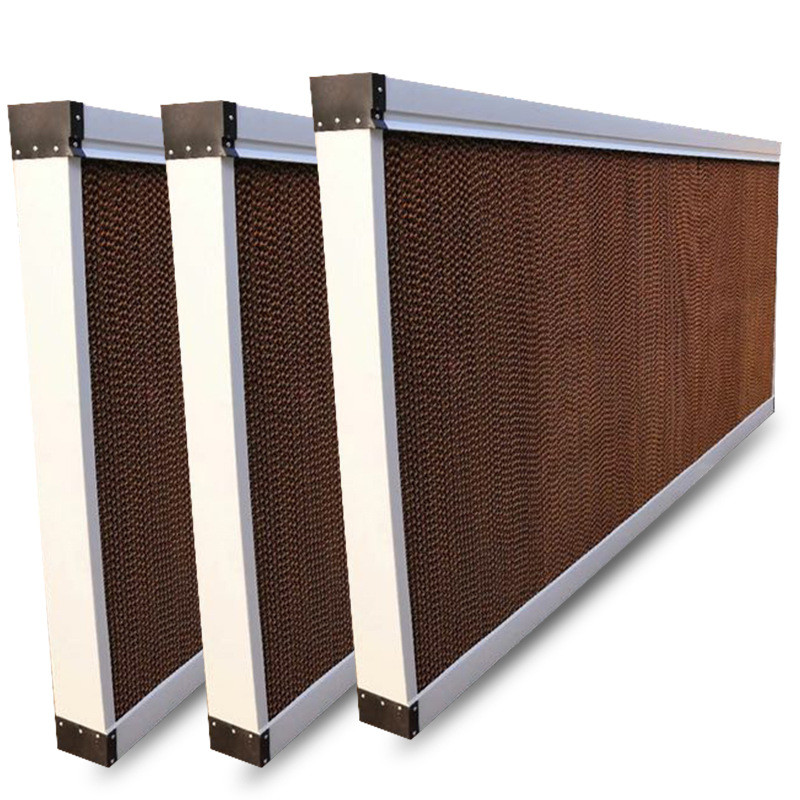

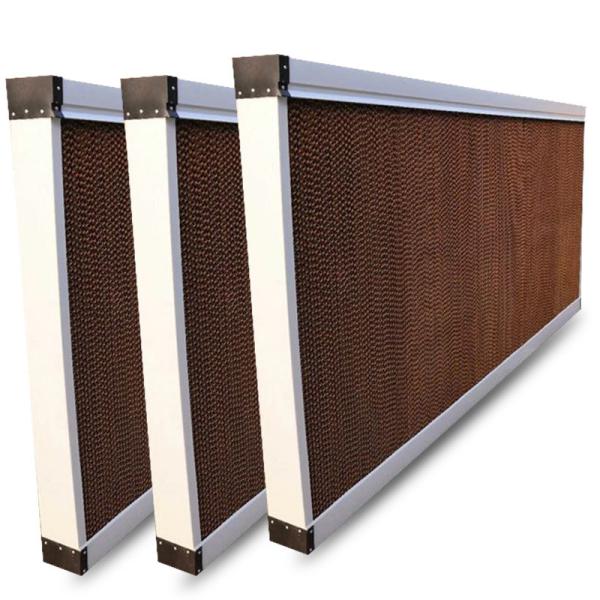

Automatic Cooling Pad:
1. The cross-link technology is adopted between the space and the new material featured with brilliant performance including high ability to absorb, great water proof, anti-mildew, long service life, great ratio of surface evaporation with the efficiency to cool up to ninety percent.
2. Poultry 5090/7060 Evaporative Air Cooler Cooling Pad is covered with active agent on the surface, ability to absorb the water naturally, quick pervasion and the long effectiveness. Within four to five seconds, the water can disappear. High ability to absorb includes 60-70mm/5 minutes, 200mm/1.5 hours at international standard.
3. Without phenol and any other chemical substances, the skin can be protected from the allergy facing the installation of the products, featured with safety, energy saving, environmental protection and economic application.
Cooling pad and fan, the longitudinal ventilation and cooling combination is the most economic and effective summer cooling system for poultry house.
Color: black, yellow, green, red etc
Thickness: 100mm, 150mm
Height:
1660mm, 1960mm, 2160mm (with frame)
1500mm, 1800mm, 2000mm(without frame)
Frame:
Aluminium frame -- high strength, good corrosion resistance, even water distribution, compact structure, beautiful and practical.
Galvanized steel frame for your option, lower price than aluminium frame.
Feature:
1.the pad made by imported fiber paper,keep durable and corrosion resistant .
2.the frame made by galvanized steel plate,stainless steel or aluminium alloy,keep it solid and long serve life.
3.the standard liked the form above,the size and frame material can custom along your require.
4.the cooling pad keep heavy water capacity and strong cooling rate.
5.the area of water evaporation is big,cooling rate as high as 80% more.
6.enduring to provide comfortable temperature and humidity for poultry house.

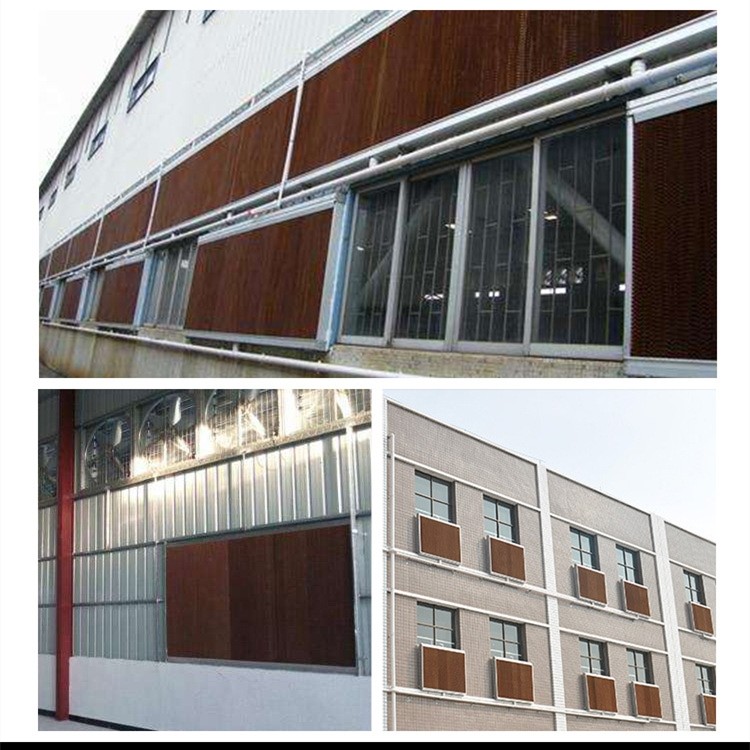

System Pictures:
